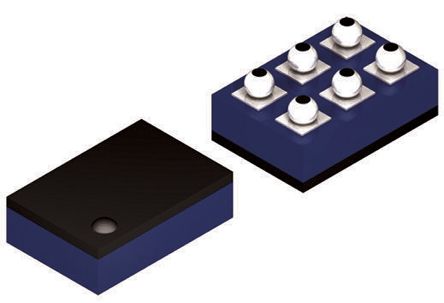

The TMP105YZCT is a serial output Temperature Sensor with 2-wire interface that is SMBus-compatible, with the TMP105 allowing up to two devices on one bus. The TMP105 features an SMBus Alert function. Requiring no external components, the TMP105 is capable of reading temperatures with a resolution of 0.0625°C.
Low quiescent current - 50µA Active, 1.5µA Shutdown
Supports 1.8V I²C bus
Two addresses
9 to 12-bit User-selectable resolution
No power-up sequence required, I²C pull-ups can be enabled prior to V+
