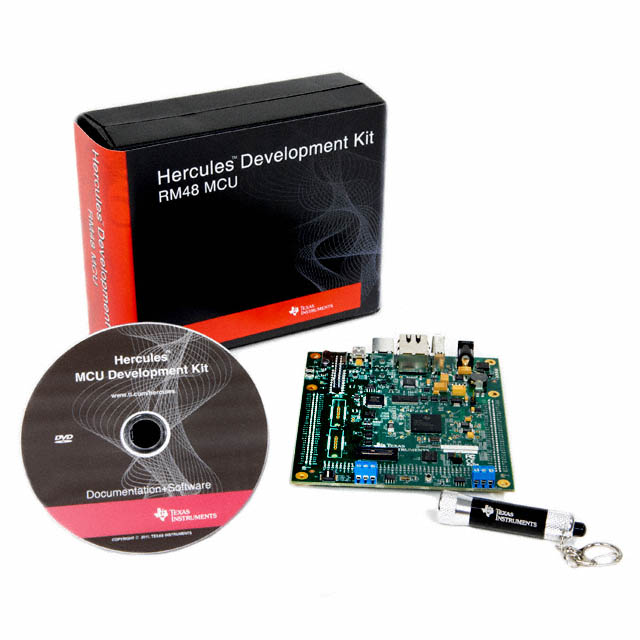

The TMDXRM48HDK is an Hercules development kit for RM48L952, a high performance microcontroller family for safety systems. The RM48L952 device integrates the ARM Cortex-R4F floating point CPU which offers an efficient 1.66DMIPS/MHz, and has configurations which can run up to 220MHz, providing up to 365DMIPS. The device supports the little endian [LE] format. The RM48L952 device has 3MB of integrated flash and 256KB of data RAM with single bit error correction and double bit error detection. The flash memory on this device is a non-volatile, electrically erasable and programmable memory implemented with a 64bit wide data bus interface. The Hercules development kit is designed to work with code composer studio and other third party ARM IDEs. The IDE communicates with the board through the embedded emulator or an external JTAG emulator.
A Hercules RM48L952 337pin BGA microcontroller
Integrated USB JTAG Emulator (XDS100v2)
On board SCI to PC serial communication
RJ45 10/100 Ethernet interface
Access to signal pin test points
LEDs, temp sensor and light sensor
CAN transceivers (SN65HVDA541Q1) and screw terminal blocks
