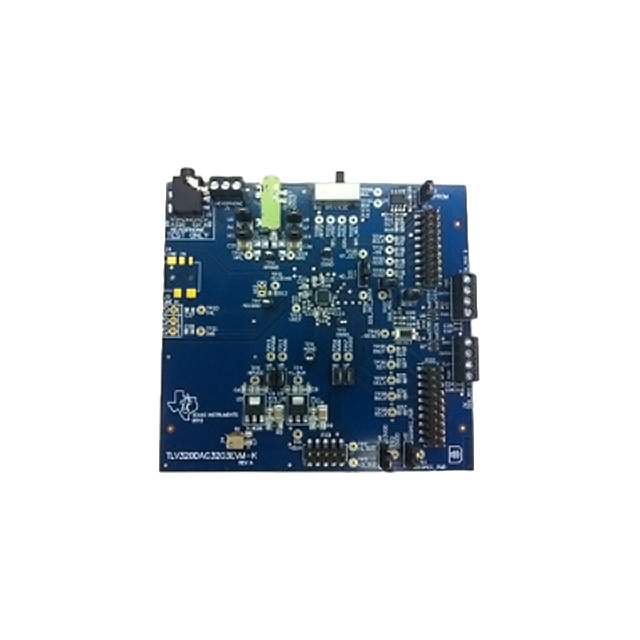

The TLV320DAC3203EVM is in the modular EVM form factor, allowing direct evaluation of the device performance and operating characteristics and simplifying software development and system prototyping. The TLV320DAC3203EVM-K consists of two separate circuit boards, the USB-MODEVM and the TLV320DAC3203EVM. The USB-MODEVM is built around the TAS1020B streaming audio USB controller with an 8051 based core. The motherboard features two positions for modular EVMs, or install one double wide serial modular EVM. The TLV320DAC3203EVM is one of the double wide modular EVMs designed to work with the USB-MODEVM. The TLV320DAC3203EVM-K is operational with one USB cable connection to a PC. The USB connection provides power, control, and streaming audio data to the EVM for reduced setup and configuration. The EVM also allows external control signals, audio data, and power for advanced operation. This allows prototyping and connection to the rest of the development, and system evaluation.
Full featured evaluation board for the TLV320DAC3203 stereo audio codec
USB connection to PC provides power, control and streaming audio data for easy evaluation
Digital microphone connections
Connection points for external control and digital audio signals
