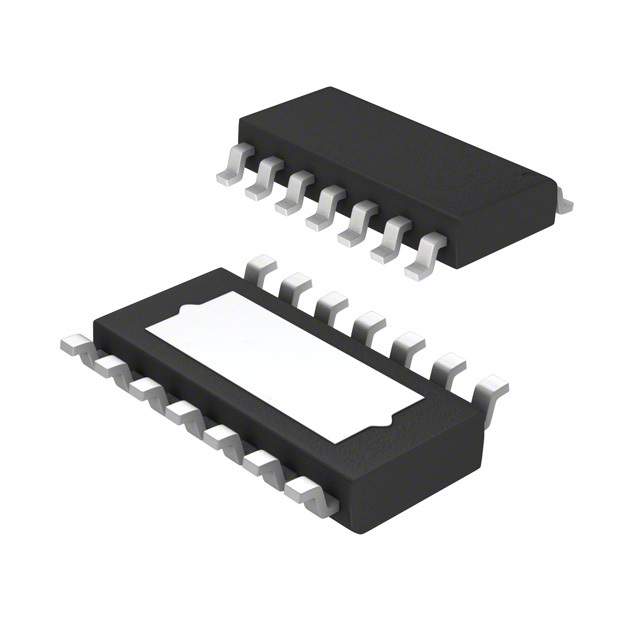

The TLE7272-2 is a monolithic integrated low dropout voltage regulator for load currents up to 300 mA. An input voltage up to 42 V is regulated to V Q,nom = 5.0 V with a precision of ±2%. Due to its integrated reset circuitry featuring power on timing and output voltage monitoring the IC is well suited as µ-controller supply. The sophisticated design allows to achieve stable operation even with ceramic output capacitors down to 470 nF. The device is designed for the harsh environment of automotive applications. Therefore it is protected against overload, short circuit and overtemperature conditions by the implemented output current limitation and the overtemperature shutdown circuit. The TLE7272-2 can be also used in all other applications requiring a stabilized 5 V voltage.
Summary of Features:
Ultra Low Current Consumption 20 µA
Output Voltage 5 V ±2%
Output Current up to 300 mA
Power-On and Under voltage Reset
Reset Low Down to V Q = 1 V
Enable Input
Very Low Dropout Voltage
Output Current Limitation
Overtemperature Shutdown
Wide Temperature Range From -40 °C up to 150 °C
Green Product (RoHS compliant)
AEC Qualified
Benefits:
Wide input operation and temperature range
Very low quiescent current stable with 470nF ceramic capacitor
