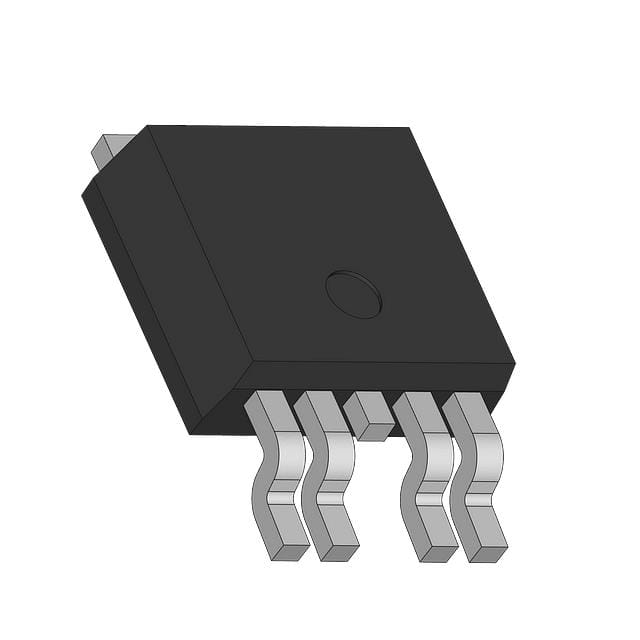

The TLE4675 is a monolithic integrated low drop out fixed output voltage regulator for loads up to 400 mA. An input voltage up to 45 V is regulated to an output voltage of 5 V. The integrated reset function, as well as several protection circuits combined with the wide operating temperature range offered by the TLE4675 make it suitable for supplying microprocessor system in automotive environments.
Summary of Features:
Output Voltage 5 V ± 2%
Output Current Capability 400 mA
Ultra Low Current Consumption
Very Low Drop Out Voltage
Reset Circuit Sensing the Output Voltage with Programmable Delay Time
Reset Output Active Low Down to V Q = 1 V
Excellent Line Transient Robustness
Maximum Input Voltage -42 V ≤ V I ≤ +45 V
Reverse Polarity Protection
Short Circuit Protected
Over temperature Shutdown
Automotive Temperature Range -40 °C ≤ T j ≤ 150 °C
