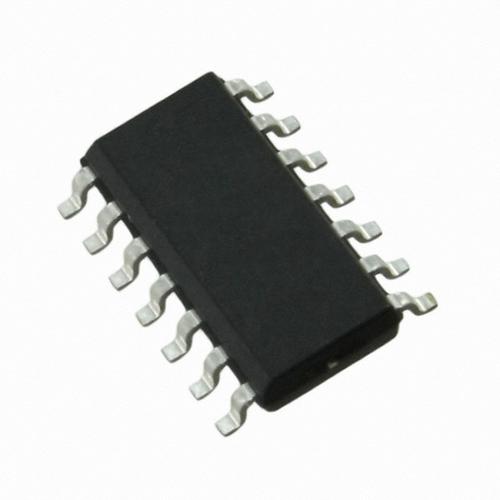

The TLE4207G is a protected dual Half-bridge Driver designed specially for industrial motion control applications. The part is built using the Infineon bipolar high voltage power technology DOPL. The actuator (DC motor) can be connected direct between the half-bridge. Operation modes forward (CW), reverse (CCW), brake and high impedance are invoked from a standard interface. Furthermore the built in features like diagnosis, over and under-voltage-lockout, short-circuit-protection, over-temperature-protection and the very low quiescent current in standby mode will open a wide range of applications.
Very low current consumption in standby (Inhibit) mode
Output protected against short circuit
Error flag diagnosis
Over-voltage lockout and diagnosis
Under-voltage lockout
CMOS/TTL compatible inputs with hysteresis
No crossover current
Internal clamp diodes
Over-temperature protection with hysteresis and diagnosis
