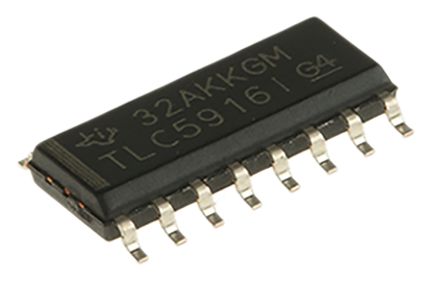

The TLC5916ID is a 8-channel Constant Current LED Sink Driver designed to work alone or cascaded. Since each output is independently controlled, they can be programmed to be on or off by the user. The high LED voltage (VLED) allows for the use of a single LED per output or multiple LEDs on a single string. With independently controlled outputs supplied with constant current, the LEDs can be combined in parallel to create higher currents on a single string. The constant sink current for all channels is set through a single external resistor. This allows different LED drivers in the same application to sink various currents which provides optional implementation of multi-colour LEDs. An additional advantage of the independent outputs is the ability to leave unused channels floating. The flexibility of the TLC5916 LED driver is ideal for applications such as 7-segment displays, scrolling single colour displays, gaming machines, white goods, video billboards and video panels.
8 Constant-current output channels
Output current adjusted through single external resistor
Constant output current range (3 to 120mA per channel)
Constant output current invariant to load voltage change
Open load, short load and over-temperature detection
256-step Programmable global current gain
Excellent output current accuracy
Fast response of output current
30MHz Clock frequency
Schmitt-trigger input
20V Maximum LED voltage
Thermal shutdown for over-temperature protection
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
