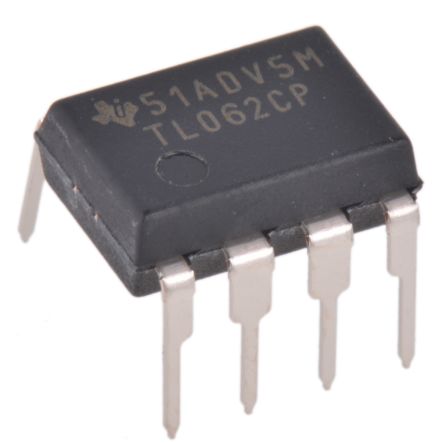

The TL062CP is a dual JFET-input general-purpose Operational Amplifier designed as low-power versions of the TL08x series amplifiers. It features high input impedance, wide bandwidth, high slew rate and low input offset and input bias currents.
Very low power consumption
200µA Typical supply current
Wide common-mode and differential voltage range
Low input bias and offset current
Common-mode input voltage range includes VCC+
Output short-circuit protection
JFET input stage high input impedance
Internal frequency compensation
Latch-up-free operation
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
