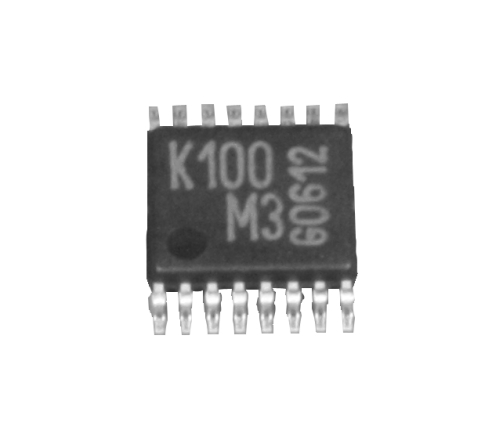

The TDK5116F is a single chip ASK/FSK transmitter for operation in the frequency band 866 ... 870 MHz. The IC offers a high level of integration and needs only a few external components. The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additional features are a power down mode and a divided clock output.
Features
• fully integrated frequency synthesizer
• VCO without external components
• ASK and FSK modulation
• frequency range 866 ... 870 MHz
• high efficiency power amplifier (typically 10 dBm)
