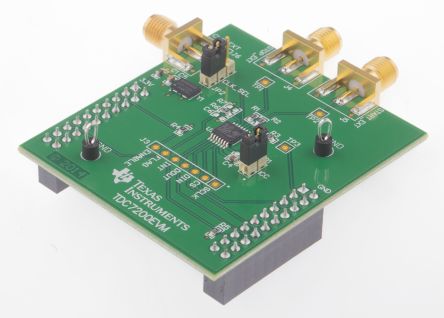

The TDC7200EVM is an Evaluation Module for evaluate the operation and performance of the TDC7200 time-to-digital converter. One example application that requires accurate time-to-digital conversion is flow sensing. The TDC7200 can be used with an ultrasonic analogue-front-end (such as the TDC1000) to capture accurate time sensing for water/gas/heat flow meters. The board has two SMA connectors for the START and STOP pulses and it connects to the MSP430 LaunchPad evaluation kit for capturing data. The board comes with an user-friendly graphic user interface (GUI) to modify the registers and display the data.
Powered by MSP430 LaunchPad (no external power needed)
