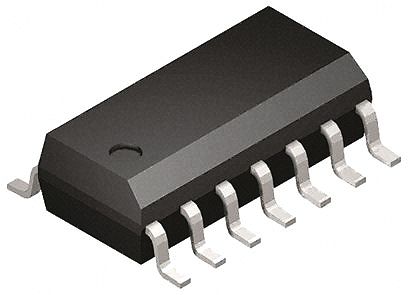

The TD350E is an advanced Gate Driver for IGBTs and power MOSFETs. Control and protection functions are included and allow the design of high reliability systems. The innovative active Miller clamp function eliminates the need for negative gate drive in most applications and allows the use of a simple bootstrap supply for the high side driver. The device also includes IGBT de-saturation protection and a FAULT status output and is compatible with both pulse transformer and optocoupler signals.
Active Miller clamp feature
Two-level turn-OFF with adjustable level and delay
De-saturation detection
Fault status output
Negative gate drive capability
Separate sink and source outputs for easy gate driving
UVLO protection
2kV ESD protection (HBM)
ESD sensitive device, take proper precaution while handling the device.
