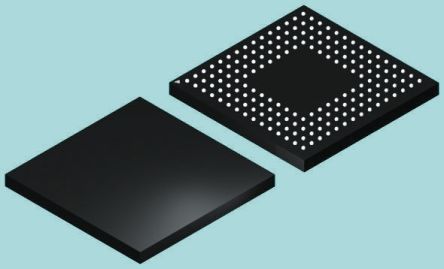

The STM32F417IGH6 is a Microcontroller Unit, based on the high-performance ARM® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168MHz. The Cortex-M4 core features a floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. It incorporates high-speed embedded memories up to 4Kbytes of backup SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.
Up to 1MB flash memory
Up to 192+4kB SRAM including 64kB CCM data RAM
LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
1.8 to 3.6V Application supply and I/Os
4 to 26MHz Crystal oscillator
Internal 16MHz factory-trimmed RC (1% accuracy)
32kHz Oscillator for RTC with calibration
Internal 32kHz RC with calibration
Low-power operation
Sleep, stop and standby modes
2x12-bit D/A Converters
Serial wire debug (SWD) and JTAG interfaces
Up to 140 I/O ports with interrupt capability
Up to 15 communication interfaces
SDIO interface
Advanced connectivity
8 to 14-bit Parallel camera interface up to 54Mbytes/s
