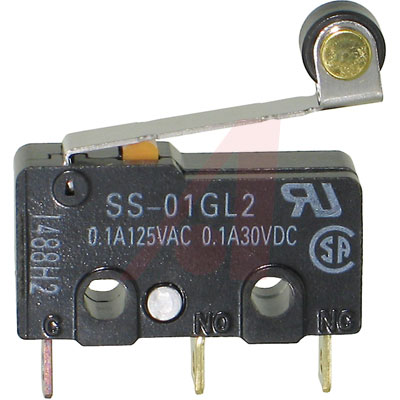

Hinge Roller Lever Actuator Type, 0.1 A, Subminiature Basic Switches
Three load switching capacities to choose from in a compact snap action switch. Long service life, high vibration and shock resistance, and easy installation. Solder terminals.* Body Size:** 19.8 × 10.2 × 6.4 mm (0.78" × 0.40" × 0.25")** .** ** Heavy-Duty Load:** rivet contacts (non-inductive, resistive) 10.1 A @ 125 VAC/250 VAC, 10.1 A @ 8 VDC/14 VDC, 4 A @ 30 VDC; 20 A max. inrush current NC, 15 A max. inrush current NO. ** Standard Load:** Rivet contacts (non-inductive, resistive); 5 A @ 125 VAC, 3 A @ 250 VAC, 5 A @ 8 VDC/14 VDC, 4 A 30 VDC; 20 A max. inrush current NC, 10 A max. inrush current NO. ** Microvoltage/Current Load:** Bifurcated crossbar contacts (non-inductive, resistive); 0.1 A @ 125 VAC/ 30 VDC; 1 A max. inrush current.
* Economical, Subminiature Snap Action Switch Offers Long Service Life (30 Million Operations Minimum, Mechanical)
* All Models Are Free from Overtravel Restrictions, Permit Easy Setting
* Wide Switching Capacity Range from Microvoltage/Current Loads (1 mA at 5 VDC to High-Capacity Loads 10.1 A at 250 VAC)
* Standard Operating Force, Low Force or Super-Low Force Models Available
