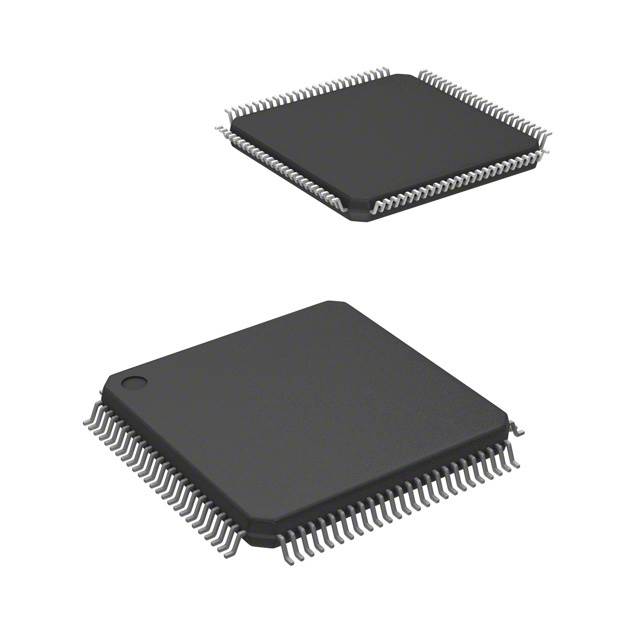

The SPC5604PGF1MLL6 is a 32-bit system-on-chip (SoC) Microcontroller is the latest achievement in integrated automotive application controllers. This family is one of a series of next-generation integrated automotive microcontrollers based on the power architecture technology. The advanced and host processor core of this automotive controller family complies with the power architecture embedded category. It operates at speeds of up to 64MHz and offers high performance processing optimized for low power consumption. It capitalizes on the available development infrastructure of current power architecture devices and is supported with software drivers, operating systems and configuration code to assist with users implementations.
Single issue, 32-bit CPU core complex (e200z0h)
Fail safe protection
Programmable watchdog timer
Non-maskable interrupt
Fault collection unit
Nexus L2+ interface
16-channel eDMA controller
16 Priority level controller
General purpose I/Os individually programmable as input, output or special function
2 General purpose eTimer units
2 LINFlex channels (LIN 2.1)
4 DSPI channels with automatic chip select generation
FlexCAN interface (2.0B Active) with 32 message objects
Safety port based on FlexCAN
FlexRay™ module (V2.1) with selectable dual or single channel support
Two 10-bit analog-to-digital converters (ADC)
On-chip CAN/UART bootstrap loader with boot assist module (BAM)
