This dual inverter buffer/driver is designed for 1.65-V to 5.5-V VCC operation.
The output of the SN74LVC2G06 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.

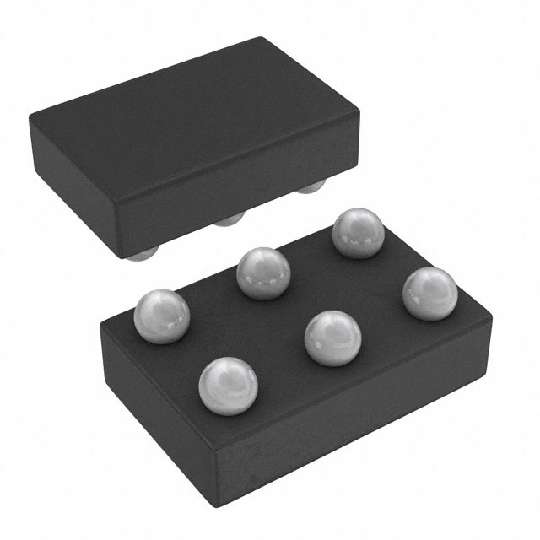

Available in the Texas Instruments NanoStar™ and NanoFree™ Packages
Supports 5-V VCC Operation
Max tpd of 3.4 ns at 3.3V
Low Power Consumption, 10-µA Max ICC
±24-mA Output Drive at 3.3v
Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
Ioff Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
