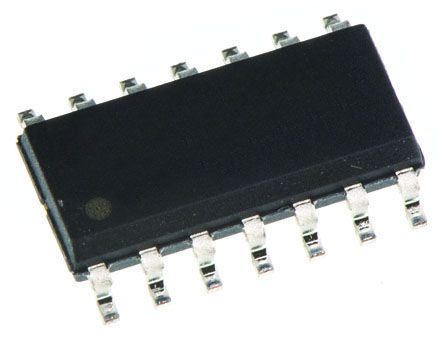

The SN74LVC14ADR is a hex Schmitt-trigger Inverter IC, designed for 1.65 to 3.6V VCC operation. The devices contain six independent inverters and perform the Boolean function Y = A. Inputs can be driven from either 3.3 or 5V devices. This feature allows the use of these devices as translators in a mixed 3.3 or 5V system environment.
Input Accepts Voltage to 5.5V
6.4ns at 3.3V Maximum Propagation Delay Time
Typical VOLP (Output Ground Bounce) <0.8V at VCC = 3.3V, TA = 25°C
Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25°C
Ioff Support Live Insertion, Partial-power-down Mode and Back Drive Protection
On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted
On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters
Latch-up Performance Exceeds 100mA Per JESD 78, Class II
Green Product, No Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
