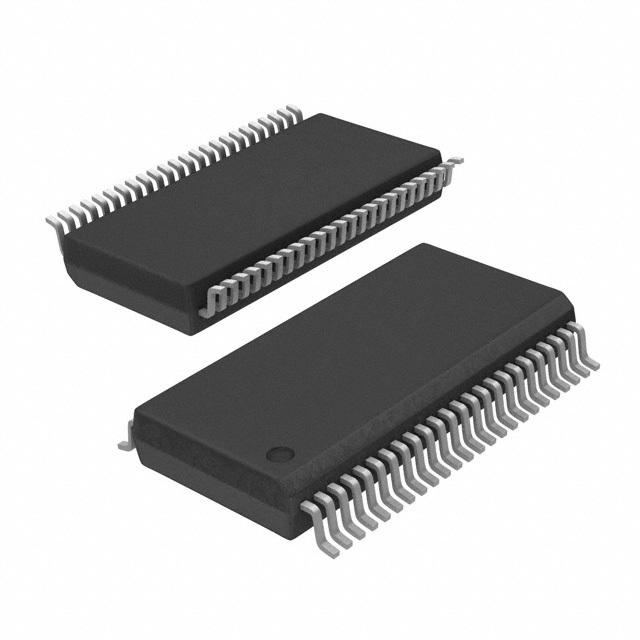

The ’ALVTH16245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
State-of-the-Art Advanced BiCMOS Technology (ABT) Widebus Design for 2.5-V and 3.3-V Operation and Low Static-Power Dissipation
Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 2.3-V to 3.6-V VCC)
Typical VOLP(Output Ground Bounce) <0.8 V at VCC= 3.3 V, TA= 25°C
High Drive (–32/64 mA at 3.3-V VCC)
Ioff and Power-Up 3-State Support Hot Insertion
Use Bus Hold on Data Inputs in Place of External Pullup/Pulldown Resistors to Prevent the Bus From Floating
