These dual 4-bit D-type edge-triggered flip-flops feature 3-state outputs designed specifically as bus drivers. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
• 3-State Buffer-Type Outputs Drive Bus Lines Directly
• Bus-Structured Pinout
• Choice of True or Inverting Logic
– SN54ALS874B, SN74ALS874B, SN74AS874 Have True Outputs
– SN74ALS876A, SN74AS876 Have Inverting Outputs
• Asynchronous Clear

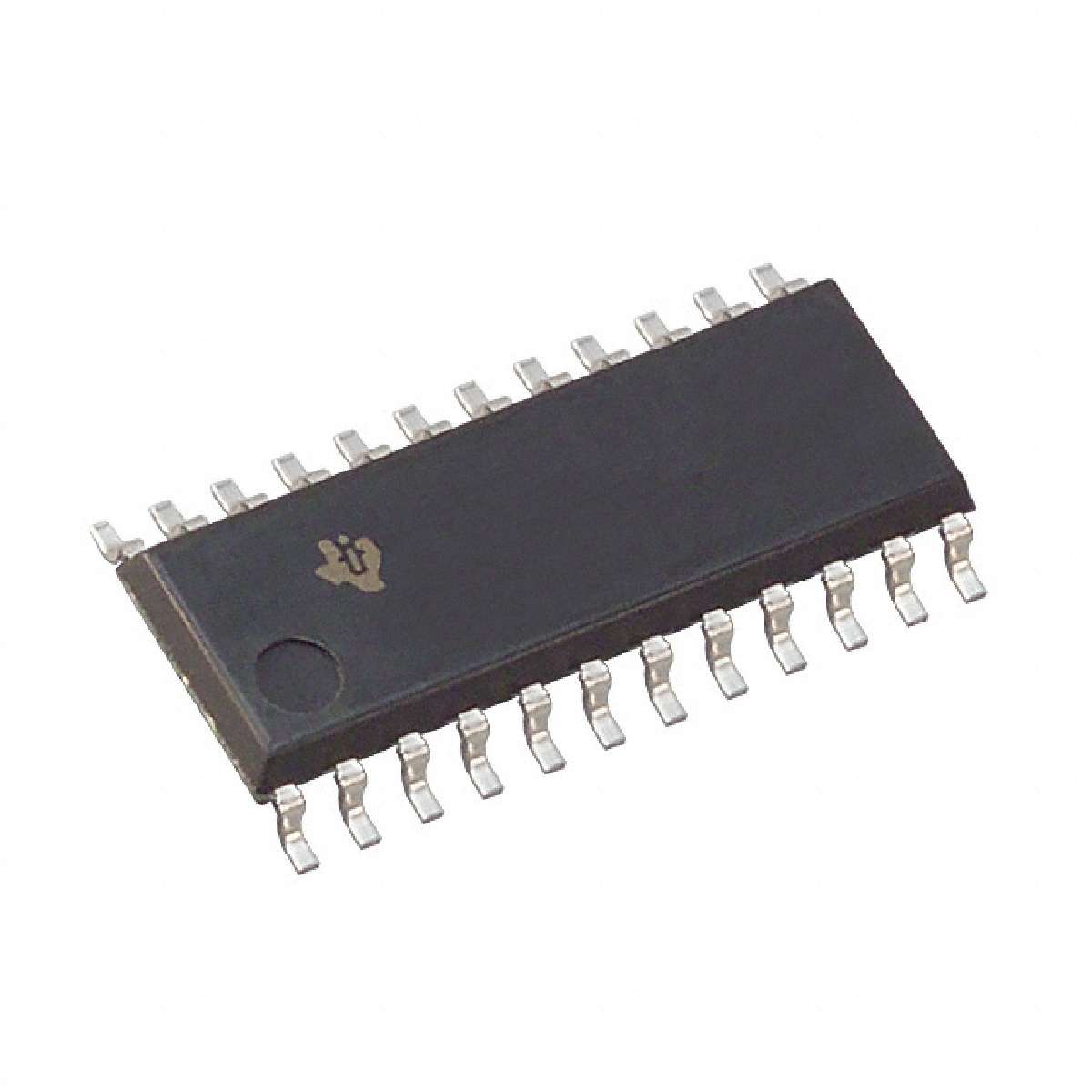

• Package Options Include Plastic Small-Outline (DW) Packages, Plastic (FN) and Ceramic (FK) Chip Carriers, and Standard Plastic (NT) and Ceramic (JT) 300-mil DIPs
