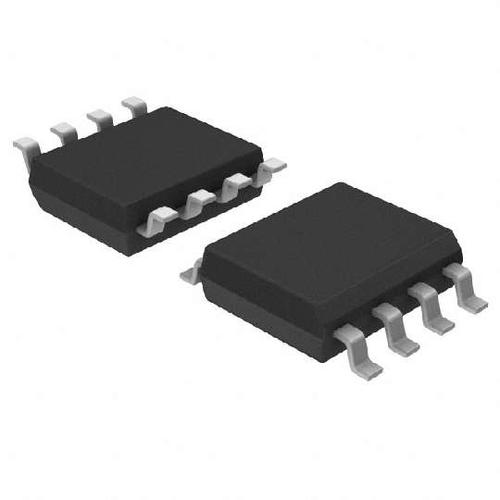

The SN65HVD230, SN65HVD231, and SN65HVD232 controller area network (CAN) transceivers are designed for use with the Texas Instruments TMS320Lx240x™; 3.3-V DSPs with CAN controllers, or with equivalent devices. They are intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard. Each CAN transceiver is designed to provide differential transmit capability to the bus and differential receive capability to a CAN controller at speeds up to 1 Mbps.
FEATURES
• Motor Control • Operates With a 3.3-V Supply
• Low Power Replacement for the PCA82C250 Footprint
• Basestation Control and Status
• Robotics
• Bus/Pin ESD Protection Exceeds 16 kV HBM
• High Input Impedance Allows for 120 Nodes
• UPS Control on a Bus
• Controlled Driver Output Transition Times for Improved Signal Quality on the SN65HVD230 and SN65HVD231
• Unpowered Node Does Not Disturb the Bus
• Compatible With the Requirements of the ISO 11898 Standard
