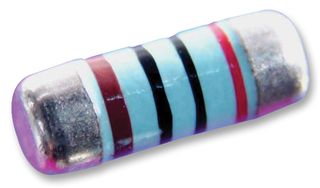

The Vishay SMM0204 series are automotive grade thin film mini-MELF resistors. The advanced metal film technology thin film MELF resistors are perfect choice for most fields of modern electronics where reliability and stability are of major concern. The resistance range includes E96, E24 and E192 decade values from 0.22ohm to 10Mohm. These resistors have an excellent stability in different environmental conditions, best in class pulse load capability and reflect the outstanding level of proven reliability. Typical application includes telecommunication and medical equipment.
DIN 0204 standard size
Neutral version available
Rated dissipation of 0.4W
Available in ±5%, ±1%, ±0.5%, ±0.25% and ±0.1% resistance tolerance
Zero ohm jumper are available
Intrinsic sulphur resistance
Operating voltage of 200V
Automotive grade AEC-Q200 qualified
±100ppm/K, ±50ppm/K, ±25ppm/K, ±15ppm/K TCR values available
