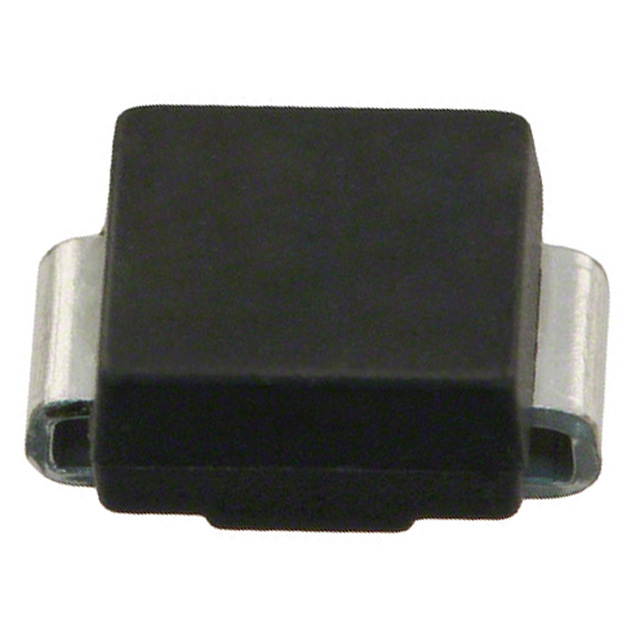

The Transil SMBJ series from STMicroelectronics are transient voltage suppressing diodes. These diodes are used to protect sensitive equipment against electrostatic discharges and electrical over stress. Transil SMBJ series are generally used against surges below 600W (10/1000 µs). Planar technology makes these devices suitable for high end equipment and SMPS where low leakage current and high junction temperature are required. These devices are packaged in SMB footprint in accordance with IPC 7531 standard.
High reliability and stability
Peak pulse power of 600W at 10/1000µs and 4KW at 8/20µs
Standoff voltage range from 5V to 188V
Available in unidirectional and bidirectional types
Operating temperature range -55°C to 150°C
High power capability of 515W
Compliant IEC 61000-4-2 level 4, IEC 61000-4-5, UL 94, EIA STD RS-481 and IEC 60286-3 standards
