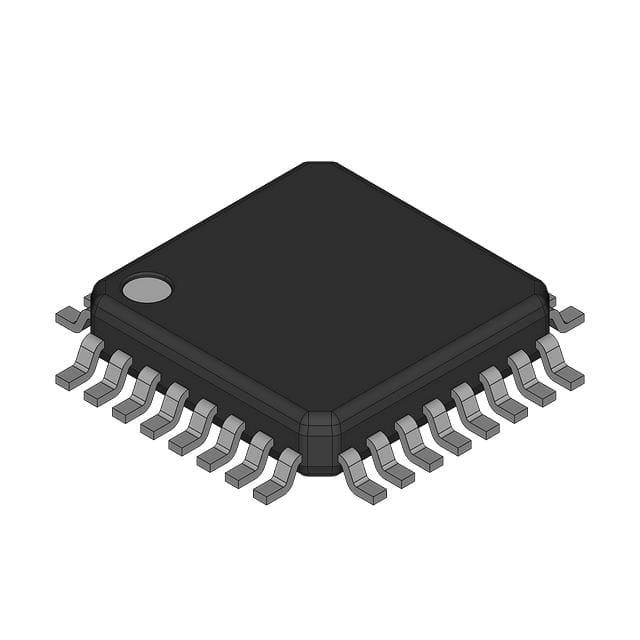

The S9S12ZVL32F0MLC is a mixed signal 16-bit Microcontroller using the 180nm NVM + UHV technology that offers the capability to integrate 40V analog components. The device features enhanced S12Z core and the integration of high-voltage analog modules, including the voltage regulator (VREG) and a Local Interconnect Network (LIN) physical layer. The MC9S12ZVL-Family includes error correction code (ECC) on RAM, FLASH and EEPROM for diagnostic or data storage, a fast analog-to-digital converter (ADC) and a frequency modulated phase locked loop (IPLL) that improves the EMC performance. The MC9S12ZVL-Family delivers an optimized solution with the integration of several key system components into a single device, optimizing system architecture and achieving significant space savings. The device delivers all the advantages and efficiencies of a 16-bit MCU while retaining the low power consumption, EMC and code-size efficiency advantages currently enjoyed by users of existing S12 families.
Harvard architecture - parallel data and code access
3-Stage pipeline
32-bit Wide instruction and data bus
32-bit ALU
24-bit Addressing (16MB linear address space)
Phase locked loop (IPLL) frequency multiplier with internal filter
1MHz Internal RC oscillator with +/-1.3% accuracy
4-20MHz Amplitude controlled pierce oscillator
Internal COP (watchdog) module
Analog-to-digital converter (ADC) with 10-bit resolution
Serial peripheral interface (SPI) module
Serial communication interface module with interface to internal LIN physical layer transceiver
On-chip LIN physical layer transceiver fully compliant with the LIN 2.2 standard
6-channel Timer module (TIM0) with input capture/output compare
2-channel Timer module (TIM1) with input capture/output compare
8-channel Pulse width modulation module (PWM)
On-chip voltage regulator (VREG)
Autonomous periodic interrupt (API), supports cyclic wakeup from Stop mode
Pins to support 25mA drive strength to VSSX
Pin to support 20mA drive strength from VDDX (EVDD)
