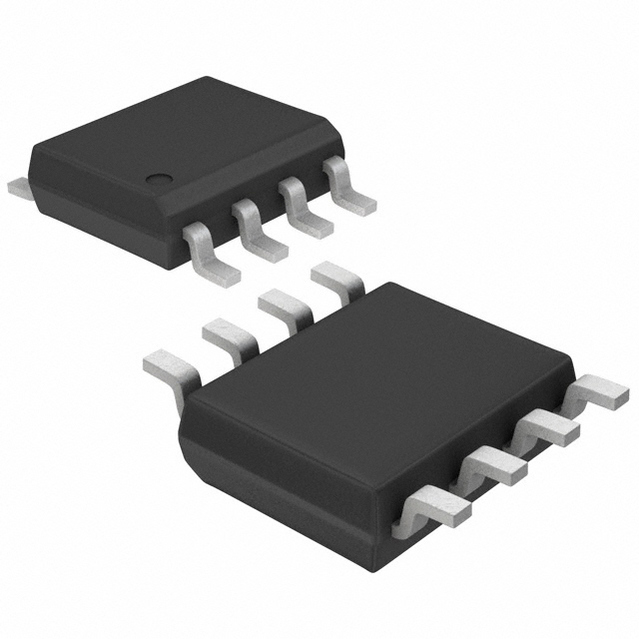

The REF02HSA+ from Maxim Integrated Products is a precision voltage reference in 8 pin NSOIC package. This industry standard voltage reference has single supply operation over an input voltage range of 7V to 33V. The stable 5V output of this device can be adjusted over a ±6% range with minimal effect on temperature stability. It offers low current drain of 1mA and provides a TEMP pin whose output voltage varies linearly with temperature making this device suitable for a wide variety of temperature-sensing and control applications. This device is used in analogue to digital converters, digital to analogue converters, digital voltmeters, voltage regulators and threshold detectors.
±6% output adjustment range at TA = +25°C
Operating temperature range from 0°C to 70°C
Short circuit protected, 25ppm/°C maximum tempco, ±25mV initial error
Output voltage noise of 10µVP-P at 0.1Hz to 10Hz, TA = +25°C
Quiescent supply current is 1mA at TA = +25°C
Load current of 21mA and sink current of 0.5mA at TA = +25°C
