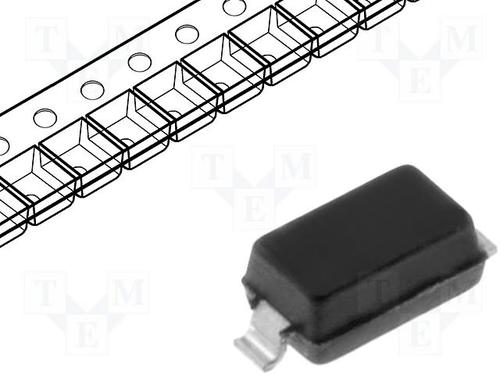

The PMEG6010CEH from NXP is surface mount very low VF MEGA(planar maximum efficiency general application) schottky barrier rectifier in SOD-123F package. This device is intended for use in low voltage rectification, high efficiency DC/DC conversion, switch mode power supply, reverse polarity protection and low power consumption applications.
Automotive grade AEC-Q101 qualified
Guard ring for stress protection
Maximum repetitive reverse voltage Vrrm of 60V
Non repetitive forward surge current IFSM of 9A
Forward current If(AV) of 1A
Maximum forward voltage VF of 660mV at IF 1A
Operating ambient temperature range from -65°C to 150°C
