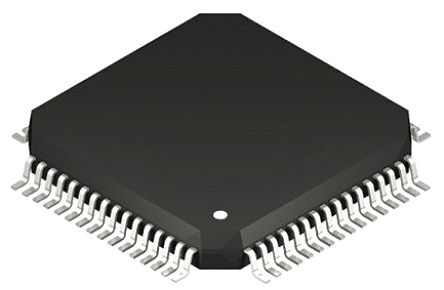

The PIC32MZ2048ECH064-I/PT is a 32-bit 64-pin 2048kB Embedded Connectivity Microcontroller features audio and graphics interfaces, HS USB, Ethernet and advanced analogue. The MIPS32® microAptiv™ microprocessor core is the heart of the PIC32MZ EC family device processor. The CPU fetches instructions, decodes each instruction, fetches source operands, executes each instruction and writes the results of instruction execution to the proper destinations. The MIPS32® microAptiv™ microprocessor core in PIC32MZ EC family devices contains several logic blocks working together in parallel, providing an efficient high-performance computing engine. The processor core execution unit implements a load/store architecture with single-cycle ALU operations (logical, shift, add, subtract) and an autonomous multiply/divide unit.
Dual panel flash for live update support
10-bit, 500kSPS and 24-channel ADC module
Memory management unit for optimum embedded OS execution
SPI/I²S interfaces for audio processing and playback
High-speed USB device/host/OTG
10/100Mbps Ethernet MAC with MII and RMII interface
Code-efficient (C and assembly) architecture
Low-power management modes (idle and sleep)
Peripheral - Peripheral pin select (PPS) functionality to enable function remap
Audio/graphics/touch HMI - SPI and I²C™ audio data control interface and PMP graphics interface
Advanced analogue - Flexible and independent ADC trigger sources
Debugger development support - In-circuit and in-application programming
ESD sensitive device, take proper precaution while handling the device.
