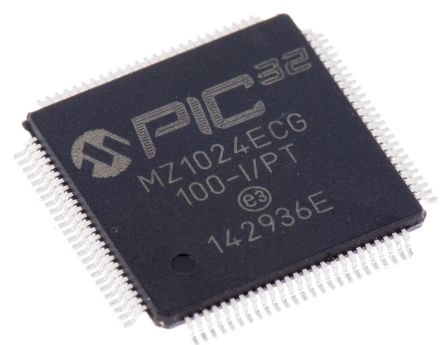

The PIC32MZ1024ECG100-I/PT is a 32-bit MCUs (up to 2MB Live-Update Flash and 512kB SRAM) with audio and graphics interfaces, HS USB, Ethernet and advanced analogue. The MIPS32® microAptiv™ microprocessor Core is the heart of the PIC32MZ EC family device processor. The CPU fetches instructions, decodes each instruction, fetches source operands, executes each instruction and writes the results of instruction execution to the proper destinations. The universal serial bus (USB) module contains analogue and digital components to provide a USB 2.0 embedded host, device or OTG implementation with a minimum of external components. The module supports high-speed, full-speed or low-speed in any of the operating modes. This module in host mode is intended for use as an embedded host and therefore does not implement a UHCI or OHCI controller.
Dual panel flash for live update support
10-bit, 500 KSPS, 40-channel ADC module
Memory management unit for optimum embedded OS execution
MicroMIPS mode for up to 35% code compression
UART, I²C, PMP, EBI, SQI and analogue comparators
High speed USB device/host/OTG
10/100Mbps Ethernet MAC with MII and RMII interface
1MB Flash memory (plus an additional 160kB of boot flash)
512kB SRAM memory
Code-efficient (C and assembly) architecture
Low-power management modes (idle and sleep)
Peripheral pin select (PPS) functionality to enable function remap
SQI configurable as an additional SPI module (50MHz)
Hardware real-time clock and calendar (RTCC)
ESD sensitive device, take proper precaution while handling the device.
