Analog design is difficult and consumes precious development time. Microchip"s intelligent PIC® MCUs integrate analog functions such as high performance Analog-to-Digital Converters (ADCs), Digital-to-Analog Converters (DACs) and operational amplifiers (op amps) providing simple to use interfaces that ease analog design. This single-chip solution enables reduced system noise and provides higher throughput, while dramatically reducing design time and cost.
**Specifications:**
* Flash Program Memory with self read/write capability
* Mid-Range Core, Internal 8 MHz oscillator
* 2 x High Speed Analog Comparators (50 ns)
* 1 x Capture-Compare-PWM (CCP)
* 4 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference,
* 1 x Dual Range 5-bit Digital-to-Analog Converter (DAC)
* Complementary Output Generator (COG): Complementary Waveforms from selectable sources
* Watchdog Timer (WDT)
* Power-On/Off-Reset, Brown-Out Reset (BOR)
* In Circuit Serial Programming (ICSP)
* High Current Source/Sink: 2 pins with 50 mA I/O, 4 pins with 25 mA I/O
* Wide Operating Voltage of PIC12F752 variant (2.0 V – 5.5 V)

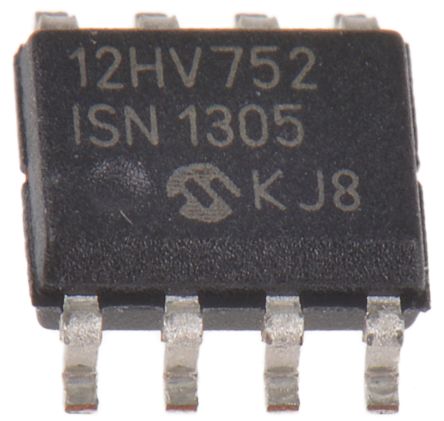

* High Voltage PIC12HV752 variant (2.0 V – user defined) with internal shunt regulator
