PCA9514AD,118 库存 & 价格

NXP I2C Buffer 3.3V/5V 8Pin SO T/R
14.30
PCA9514AD,118

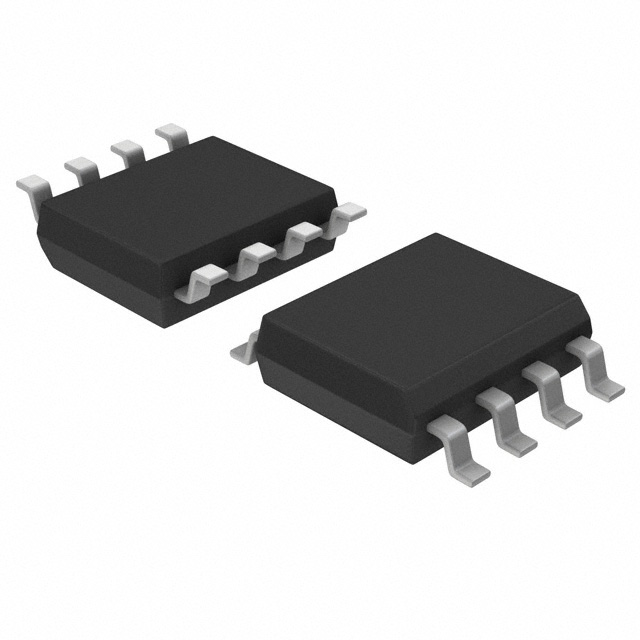

显示的图像仅供参考,应从产品数据表中获得准确的规格。
PCA9514AD,118 NXP
NXP
  • 制造商:
    NXP
  • 制造商型号#:
    PCA9514AD,118
  • 百芯编号#:
    CM35674630
  • 价格(CNY):
    14.30
  • 百芯库存:
    1,855
  • 可供应量:
    1,091 个在库
    此为供应商库存,需要与销售确认
  • 产品类别:
    接口,芯片
  • 产品描述:
    I2C Buffer 3.3V/5V 8Pin SO T/R
  • 文档: 3D模型
PCA9514AD,118 购买 PCA9514AD,118 库存和价格更新于 2025-06-16 03:50:22
  • 刷新
    器件型号: PCA9514AD,118
    百芯编号: CM35674630
    制造商: NXP
    封装: SOIC-8
    价格
    14.30
    总计: 2,946
    MOQ: 1
    库存地点: 香港
    发货日期: 2025/06/21 (预期 )
  • 购买
    *由于库存数量、价格不断波动,请 联系我们 获取型号最新价格和库存。

    元器件库存查询

    库存查询
    百芯库存涵盖100,000个元器件
    欺诈预防提醒
    近日,我们发现不法分子冒充百芯智造进行诈骗或试图低价销售假冒和故障元器件。
    百芯智造在2021年建立了一个 元器件检测实验室 ,旨在提供有质量保证的组件。
    我们强烈建议客户选择可靠的元器件供应商。
    请注意,唯一电子邮件后缀是 aipcba.com
    PCA9514AD,118 规格 显示相似产品 (99+)
    类型
    描述
    选择
    制造商
    NXP
    类别
    接口,芯片
    3D模型
     3D模型
    安装方式
    Surface Mount
    引脚数
    8 Pin
    封装
    SOIC-8
    供电电流
    3.5 mA
    通道数
    1 Channel
    针脚数
    8 Position
    输入电容
    1.9 pF
    工作温度(Max)
    85 ℃
    工作温度(Min)
    -40 ℃
    电源电压
    2.7V ~ 5.5V
    电源电压(Max)
    5.5 V
    电源电压(Min)
    2.7 V
    显示相似产品
    PCA9514AD,118 数据规格书
    PCA9514AD,118 数据手册Datasheet
    26 Pages, 164 KB
    2009/08/18
    查看
    PCA9514AD,118 数据手册Datasheet
    8 Pages, 3541 KB
    2014/07/29
    查看
    PCA9514AD,118 数据手册Datasheet
    158 Pages, 4250 KB
    2003/03/25
    查看
    PCA9514AD,118 产品设计参考
    64 Pages, 1364 KB
    2011/03/09
    查看
    PCA9514AD,118 其它数据手册Datasheet
    63 Pages, 1566 KB
    查看
    PCA9514AD,118 其它数据手册Datasheet
    58 Pages, 1034 KB
    查看
    PCA9514AD,118 其它数据手册Datasheet
    9 Pages, 131 KB
    2008/10/30
    查看
    PCA9514AD,118 其它数据手册Datasheet
    6 Pages, 250 KB
    2017/01/09
    查看
    PCA9514AD,118 其它数据手册Datasheet
    5 Pages, 310 KB
    2020/11/24
    查看
    PCA9514AD,118 其它数据手册Datasheet
    5 Pages, 240 KB
    2016/02/08
    查看
    PCA9514AD,118 其它数据手册Datasheet
    4 Pages, 214 KB
    2010/09/15
    查看
    PCA9514AD,118 其它数据手册Datasheet
    4 Pages, 232 KB
    2010/09/15
    查看
    PCA9514AD,118 其它数据手册Datasheet
    4 Pages, 774 KB
    查看
    PCA9514AD,118 其它数据手册Datasheet
    3 Pages, 456 KB
    查看
    PCA9514AD,118 其它数据手册Datasheet
    2 Pages, 740 KB
    查看
    PCA9514AD,118 其它数据手册Datasheet
    2 Pages, 9 KB
    查看
    PCA9514AD,118 其它数据手册Datasheet
    2 Pages, 373 KB
    查看
    PCA9514AD,118 其它数据手册Datasheet
    1 Pages, 20 KB
    2013/09/10
    查看
    PCA9514AD,118 其它数据手册Datasheet
    1 Pages, 9 KB
    查看
    PCA9514AD,118 应用笔记
    7 Pages, 53 KB
    2007/06/13
    查看
    尺寸 & 包装
    类型
    描述
    工作温度
    -40℃ ~ 85℃
    产品生命周期
    Active
    包装方式
    Tape & Reel (TR)
    符合标准
    类型
    描述
    RoHS标准
    RoHS Compliant
    含铅标准
    Lead Free
    出口分类
    类型
    描述
    ECCN代码
    EAR99
    产品概述
    • Overview
    • The PCA9513A and PCA9514A are hot swappable I²C-bus and SMBus buffers that allow I/O card insertion into a live backplane without corrupting the data and clock buses. Control circuitry prevents the backplane from being connected to the card until a stop command or bus idle occurs on the backplane without bus contention on the card. When the connection is made, the PCA9513A and PCA9514A provides bidirectional buffering, keeping the backplane and card capacitances isolated.
    • Rise time accelerator circuitry allows the use of weaker DC pull-up currents while still meeting rise time requirements. The PCA9513A and PCA9514A incorporates a digital ENABLE input pin, which enables the device when asserted HIGH and forces the device into a Low current mode when asserted LOW, and an open-drain READY output pin, which indicates that the backplane and card sides are connected together (HIGH) or not (LOW).
    • The PCA9513A supplies a 92 uA current source to SCLIN and SDAIN pins in lieu of using pull-up resistors which is ideal for multidrop bus applications. Including the current source in the device provides for a consistent RC time constant as cards are removed and inserted into the backplane. The current source is high-impedance whenever the pin voltage is greater than the part VCC.
    • The PCA9513A and PCA9514A rise time accelerator threshold is 0.8 V to provide better noise margin over the PCA9511A which is set to 0.6 V.
    • **Remark**: The dynamic offset design of the PCA9510A/11A/12A/13A/14A I/O drivers allow them to be connected to another PCA9510A/11A/12A/13A/14A device in series or in parallel and to the A side of the PCA9517. The PCA9510A/11A/12A/13A/14A **cannot**connect to the static offset I/Os used on the PCA9515/15A/16/16A/18 or PCA9517 B side or P82B96 Sx/y side.
    • MoreLess
    • ## Features
    • * Bidirectional buffer for SDA and SCL lines increases fan-out and prevents SDA and SCL corruption during live board insertion and removal from multipoint backplane systems
    • * Compatible with I²C-bus Standard mode, I²C-bus Fast mode, and SMBus standards
    • * Built-in ΔV/Δt rise time accelerators on all SDA and SCL lines (0.8 V threshold) requires the bus pull-up voltage and supply voltage (VCC) to be the same
    • * Rise time accelerator threshold moved from 0.6 V to 0.8 V for improved noise margin
    • * Active HIGH ENABLE input
    • * Active HIGH READY open-drain output
    • * High-impedance SDAn and SCLn pins for VCC = 0 V
    • * 92 uA current source on SCLIN and SDAIN for PICMG backplane applications (PCA9513A only)
    • * Supports clock stretching and multiple master arbitration and synchronization
    • * Operating power supply voltage range: 2.7 V to 5.5 V
    • * 0 Hz to 400 kHz clock frequency
    • * ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115, and 1000 V CDM per JESD22-C101
    • * Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
    • * Packages offered: SO8, TSSOP8 (MSOP8)
    • ## Target Applications
    • * cPCI, VME, AdvancedTCA cards and other multipoint backplane cards that are required to be inserted or removed from an operating system
    • ## Features
