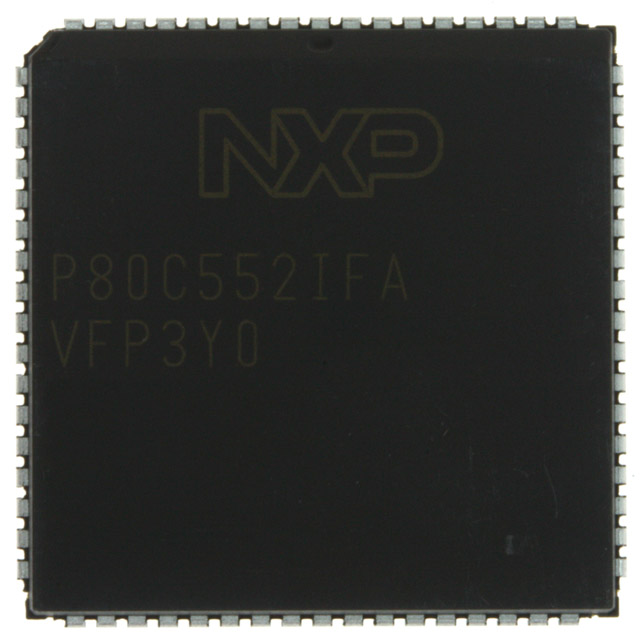

The P80C552IFA/08,512 is a single-chip 8-bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The device has the same instruction set as the 80C51. The device contains a volatile 256 x 8 read/write data memory, five 8-bit I/O ports, one 8-bit input port, two 16-bit timer/event counters, an additional 16-bit timer coupled to capture and compare latches, a 15-source, two-priority-level, nested interrupt structure, an 8-input ADC, a dual DAC pulse width modulated interface, two serial interfaces (UART and I2C-bus), a watchdog timer and on-chip oscillator and timing circuits. For systems that require extra capability, the 8XC552 can be expanded using standard TTL compatible memories and logic. The device has two software selectable modes of power reduction idle mode and power-down mode.
80C51 Central processing unit
ROM Expandable externally to 64kB
ROM code protection
An additional 16-bit timer/counter coupled to four capture registers and three compare registers
Two standard 16-bit timer/counters
RAM Expandable externally to 64kB
Capable of producing eight synchronized, timed outputs
A 10-bit ADC with eight multiplexed analog inputs
Two 8-bit resolution, pulse width modulation outputs
Five 8-bit I/O ports plus one 8-bit input port shared with analog inputs
I2C-bus serial I/O port with byte oriented master and slave functions
Full-duplex UART compatible with the standard 80C51
