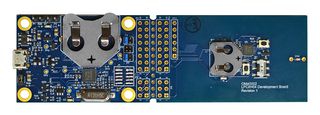

The OM40002UL from NXP is a development board for LPC8N04 MCU. The LPC8N04 development board provides a powerful and flexible development system for NXP"s innovative, NFC enabled LPC8N04 Arm® Cortex®-M0+ based MCU. The board is complemented by a sample smartphone application and firmware to utilize the built-in LED array and speaker in a scrolling message demo application with option for music playback. The LPC8N04 process section of the board with its integral NFC antenna can be detached for deployment in prototype or proof-of-concept designs.
Compatible with MCUXpresso IDE and other popular toolchains (IAR® and Keil®)
On-board CMSIS-DAP (debug probe) based on LPC11U35 MCU
Debug connector to allow debug of target MCU using an external probe
Detachable LPC8N04 minimal target with integrated PCB antenna
Supports energy harvesting operation with no battery or external power connection
User and target reset buttons
5x7 LED array for user applications
Surface mount speaker with amplifier for PWM based sound output
Pre-programmed with demo message scrolling /tune playing application
