MX7548JCWP+Maxim IntegratedMAXIM INTEGRATED PRODUCTS MX7548JCWP+ Digital to Analog Converter, Precision, 12Bit, Parallel, 11.4V to 15.75V, 4.75V to 5.25V, WSOIC
￥
70.45

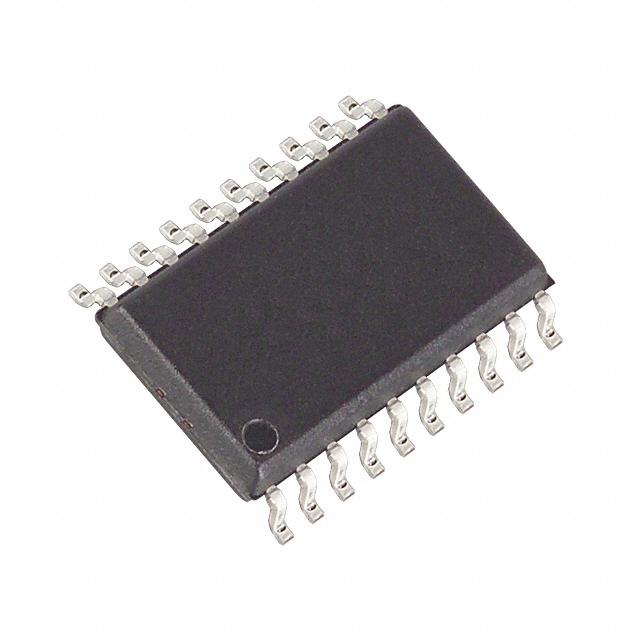

显示的图像仅供参考，应从产品数据表中获得准确的规格。
MX7548JCWP+Maxim Integrated
制造商:
Maxim Integrated
制造商型号#:
MX7548JCWP+
百芯编号#:
CM68518692
价格(CNY):
￥
70.45
百芯库存:
281
个
库存地点:
可供应量:
211
个在库
此为供应商库存，需要与销售确认
产品类别:
DA转换器,数模
产品描述:
MAXIM INTEGRATED PRODUCTS MX7548JCWP+ Digital to Analog Converter, Precision, 12Bit, Parallel, 11.4V to 15.75V, 4.75V to 5.25V, WSOIC
The MX7548JCWP+ is a CMOS, 8bit microprocessor compatible, 12bit DAC in 20 pin WSOIC package. The CMOS current output DAC with a versatile interface uses 8bit bus for interfacing microprocessors. It accepts data into its input register in two bytes in either left or right justified format. The standard write input, chip select most significant byte, chip select least significant byte inputs control the data load operation. A separate load DAC input controls transfer of data from the input register to the DAC register allowing for simultaneous update of all DACs in multi DAC systems. A data override input forces the DAC output to full scale or zero code without altering the contents of the input registers. This permits the user to perform DAC calibration conveniently without having to load calibration data into DAC. Typical applications include digitally controlled filters, programmable gain amplifiers, automatic test equipment, motion control systems and programmable power supplies.
Supply voltage range is 11.4V to 15.75V, 4.75V to 5.25V
Operating temperature range from 0°C to 70°C
Supports parallel interface
Digital inputs are designed with improved ESD protection typically withstand over 5000V
Digital inputs are TTL and 5V CMOS compatible
Low tempco thin film resistors are laser trimmed to ±1/4LSB linearity and ±1LSB gain accuracy
