The MSP430G2231 is an ultra-low-power microcontroller consisting of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
FEATURES
• Low Supply-Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
– Active Mode: 220 µA at 1 MHz, 2.2 V
– Standby Mode: 0.5 µA
– Off Mode (RAM Retention): 0.1 µA
• Five Power-Saving Modes
• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• Basic Clock Module Configurations
– Internal Frequencies up to 16 MHz With One Calibrated Frequency
– Internal Very Low Power Low-Frequency (LF) Oscillator
– 32-kHz Crystal (1)
– External Digital Clock Source
• 16-Bit Timer_A With Two Capture/Compare Registers
• Universal Serial Interface (USI) Supporting SPI and I2C (See Table 1)
• Brownout Detector
• 10-Bit 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, and Autoscan (See Table 1)
• Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
• On-Chip Emulation Logic With Spy-Bi-Wire Interface
• For Family Members Details, See Table 1 and

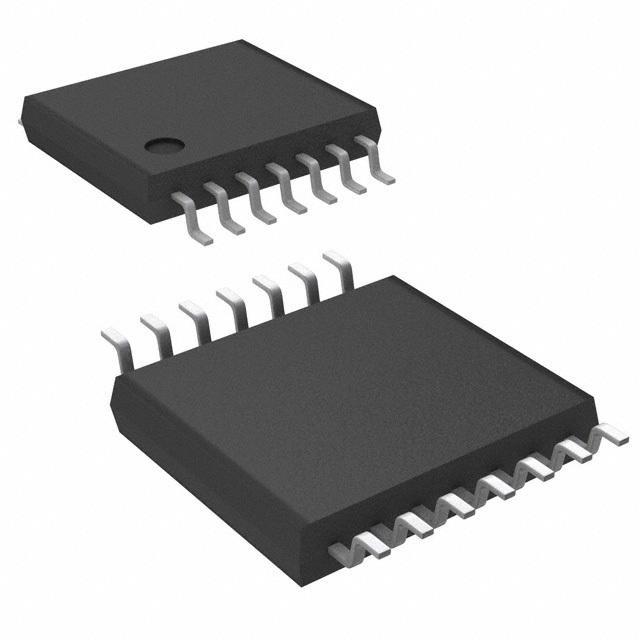

• Available in a 14-Pin Plastic Small-Outline Thin Package (TSSOP) (PW)
• For Complete Module Descriptions, See the MSP430x2xx Family User’s Guide (SLAU144)
SUPPORTS DEFENSE, AEROSPACE, AND MEDICAL APPLICATIONS
• Controlled Baseline
• One Assembly/Test Site
• One Fabrication Site
• Available in Extended (–40°C/125°C) Temperature Range (2)
