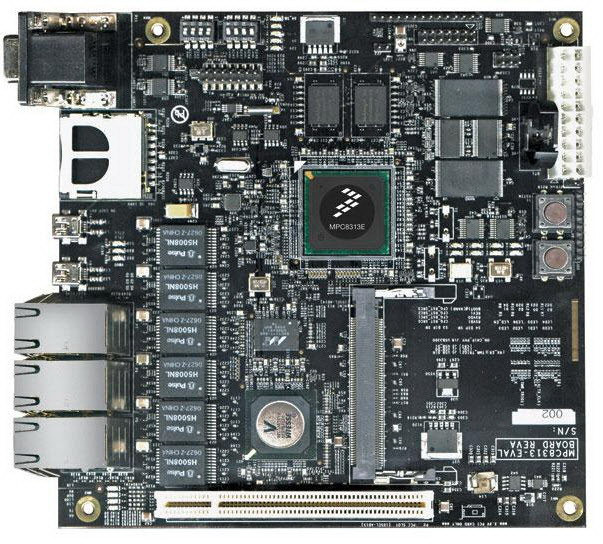

The MPC8313E-RDBC is a Reference Platform for hardware and software development of networking applications. The board leverages highly integrated MPC8313E processor built on Power Architecture® technology and leading-edge external components, a five-port gigabit Ethernet switch, USB port, one PCI slot, one MiniPCI slot and one SD card memory slot. The high level of integration in the MPC8313E helps to improve performance and simplify board design.
MPC8313E running at 333/333MHz (CPU/DDR2)
128MB Unbuffered DDR2 SDRAM discrete devices
8MB Flash single-chip memory
32MB NAND flash memory
256KB M24256 serial EEPROM
SD connector to interface with the SD memory card in SPI mode
10/100/1000 BaseT Ethernet ports
USB 2.0 port
PCI - 32-bit PCI interface running at up to 66MHz
Dual UART ports - supports up to 115200bps for console display
