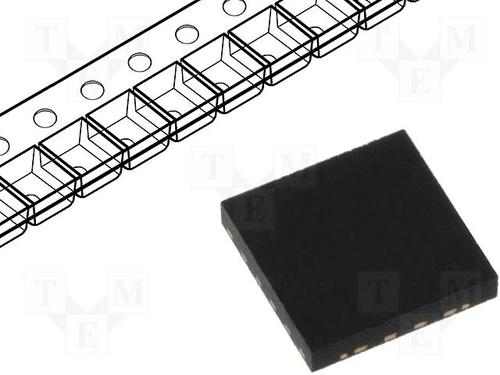

The MCP73871-2AAI/ML is a stand-alone system load sharing and Li-ion/Li-polymer Battery Charge Management Controller fully integrated linear solution with AC-DC wall adapter and USB port power sources selection. It is also capable of autonomous power source selection between input and battery. The MCP73871 device automatically obtains power for the system load from a single-cell Li-ion battery or an input power source (AC-DC wall adapter or USB port). The MCP73871 device specifically adheres to the current drawn limits governed by the USB specification. With an AC-DC wall adapter providing power to the system, an external resistor sets the magnitude of 1A maximum charge current while supporting up to 1.8A total current for system load and battery charge current.
Simultaneously power the system and charge the li-ion battery
Voltage proportional current control (VPCC)
Low-loss power-path management with ideal diode operation
Integrated pass transistors
Integrated current sense
Integrated reverse discharge protection
Selectable input power sources, USB port or AC-DC wall adapter
Constant current/constant voltage (CC/CV)
Operation with thermal regulation
Maximum 1.8A total input current control
50mA to 1A Resistor programmable fast charge current control
Resistor programmable termination set point
Selectable USB input current control
Automatic recharge
Automatic end-of-charge control
Safety timer with timer enable/disable control
0.1C Preconditioning for deeply depleted cells
Battery cell temperature monitor
Under-voltage lockout (UVLO)
Low battery status indicator (LBO)
ESD sensitive device, take proper precaution while handling the device.
