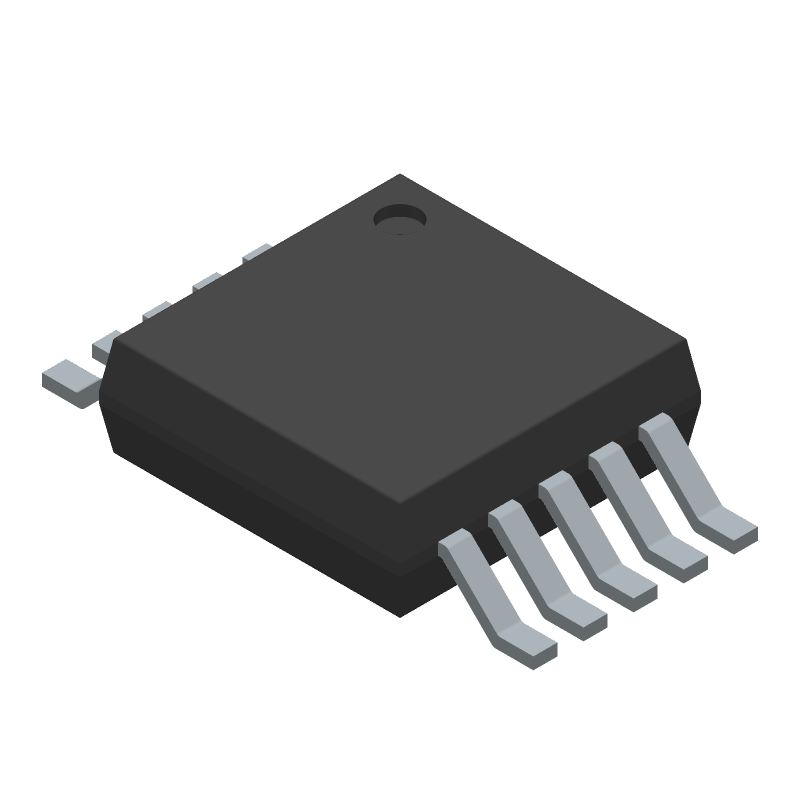

The MCP73833-FCI/UN is a 1A output current linear charge Management Controller includes integrated pass transistor, integrated current sensing and reverse discharge protection. It includes safety features such as cell temperature monitoring, on-chip thermal regulation and safety timers. The MCP73833 employs a constant current/constant voltage charge algorithm with selectable preconditioning and charge termination. The constant current value is set with one external resistor. The MCP73833 limits the charge current based on die temperature during high power or high ambient conditions. This thermal regulation optimizes the charge cycle time while maintaining device reliability.
Integrated pass transistor
Integrated current sense
Integrated reverse discharge protection
Constant current/constant voltage operation with thermal regulation
Programmable charge current up to 1A maximum
Preconditioning of deeply depleted cells
Automatic end-of-charge control selectable current threshold
Automatic recharge selectable voltage threshold
Two charge status outputs
Cell temperature monitor
Low-dropout linear regulator mode
Automatic power-down when input power removed
Under-voltage lockout
Power good output
ESD sensitive device, take proper precaution while handling the device.
