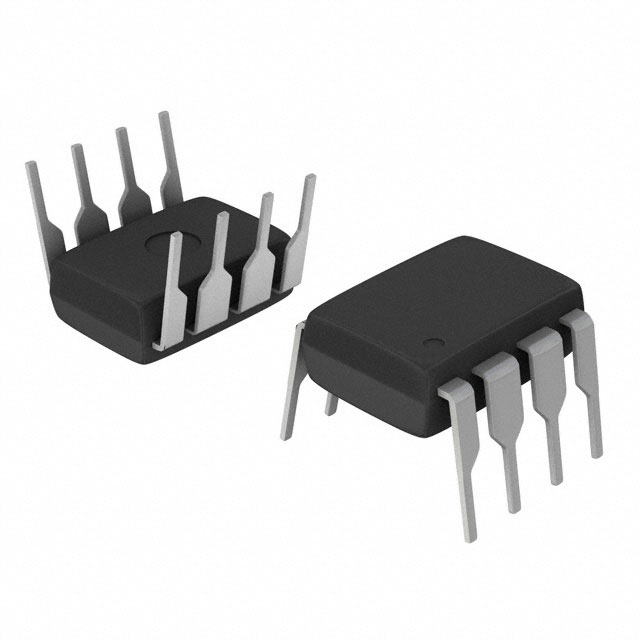

The MCP6541-E/P is a Push-Pull Single Comparator featuring single-ended operates from 1.6 to 5.5V, with typical quiescent current of 600nA and a maximum of 1µA. These comparators are optimized for low-power, single-supply operation with greater than rail-to-rail input operation. The push-pull output of the MCP6541 family supports rail-to-rail output swing and interfaces with TTL/CMOS logic. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The output limits supply current surges and dynamic power consumption while switching. This product family operates with a single-supply voltage as low as 1.6V and draws less than 1µA/comparator of quiescent current.
600nA (typical) Low operating current
Rail-to-rail input/output
CMOS/TTL-compatible output
Low switching current
3.3mV Typical internal hysteresis
ESD sensitive device, take proper precaution while handling the device.
