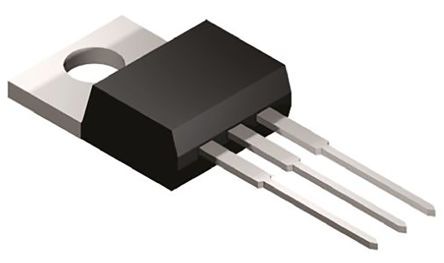

The MCP1826S-3302E/AB is a 1A ceramic output cap stable low output voltage Low Dropout Regulator provides high-current and low-output voltages. The MCP1826 comes in a fixed or adjustable output voltage version, with an output voltage range of 0.8 to 5.0V. The 1000mA output current capability, combined with the low-output voltage capability, make the MCP1826 a good choice for new sub-1.8V output voltage LDO applications that have high current demands. The MCP1826S is a 3-pin fixed voltage version. The MCP1826/MCP1826S is stable using ceramic output capacitors that inherently provide lower output noise and reduce the size and cost of the entire regulator solution. Only 1µF of output capacitance is needed to stabilize the LDO.
300mV (typical) Low dropout voltage
Output voltage from 0.8 to 5V
Stable with 1µF ceramic output cap
Power good output
120µA Typical low supply current
ESD sensitive device, take proper precaution while handling the device.
