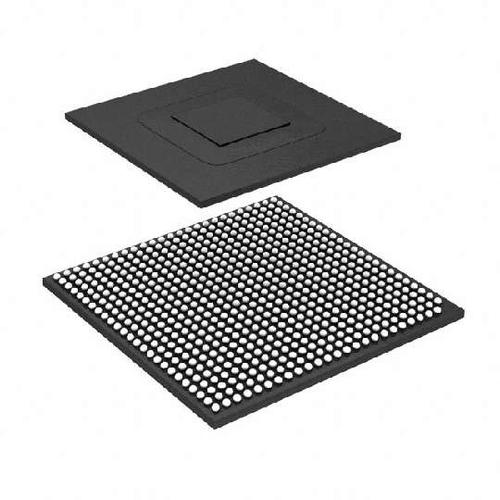

The i.MX 6QuadPlus family delivers dramatic graphics and memory performance enhancements and are pin-compatible with a broad range of i.MX 6 processors. This device encompasses a quad-core ARM® Cortex®-A9 platform running up to 1.2 GHzwith 1 MB of L2 cache, advanced graphics, prefetch and resolve engine, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity, while integration of LVDS, MIPI display port, MIPI camera port and HDMI v1.4 makes it an ideal multicore platform for leading-edge consumer, automotive and industrial multimedia applications which require higher graphics performance.
Visit www.nxp.com/imx6tools for the latest software and tools.
* 1.0 GHz available now. For 1.2 GHz, contact NXP® for availability.
MoreLess
## Features
### CPU Complex
* 4x ARM® Cortex®-A9 up to 1.2 GHz per core
* 1 MB L2 cache
* 32 KB instruction and data caches
* NEON SIMD media accelerator
### Multimedia
* Embedded prefetch & resolve engine
* GPU 3D
* Vivante GC2000
* 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, OpenCL™ 1.1 EP
