The MCF51AC family, comprised of pin-compatible 8-bit and 32-bit device duos, is the third family in the Flexis® series. The Flexis series of controllers is the connection point on the NXP® Controller Continuum, where 8- and 32-bit compatibility becomes reality.

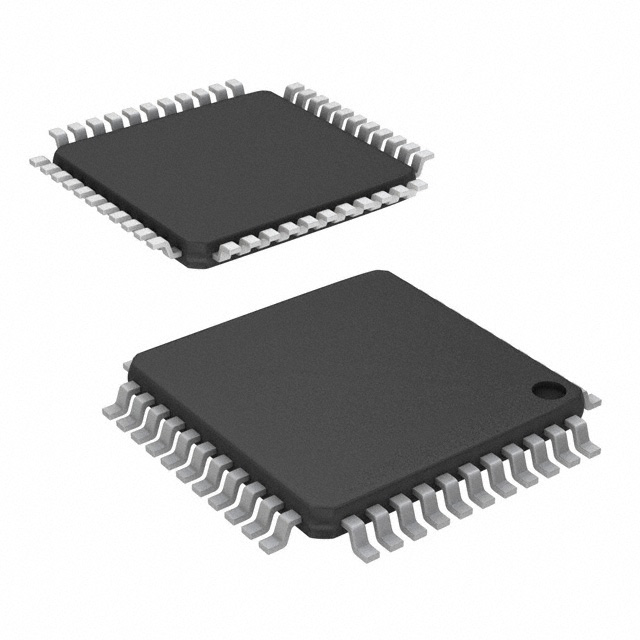

The MCF51AC256/128 device extends the low end of the 32-bit ColdFire® controller family with up to 256 KB flash memory, a controller area network (CAN) module, a 16-bit FlexTimer module, 24-channel, 12-bit analog-to-digital converter (ADC) and delivers up to 25 MHz in bus frequency. The 32-bit MCF51AC256/128 is pin-, peripheral- and tool-compatible with the 8-bit S08AC128/96/60/48/32 devices. They share a common set of peripherals and development tools to deliver the ultimate in migration flexibility.
MoreLess
## Features
* V1 ColdFire® core with background debug module
* Up to 256 KB of flash memory
* Up to 32 KB of static RAM (SRAM)
* Up to two analog comparators (ACMP)
* ADC with up to 24 channels
* CAN
* Cyclic redundancy check (CRC)
* Inter-integrated circuit (IIC)
* Keyboard interrupt (KBI)
* Multipurpose clock generator (MCG)
* Rapid general-purpose input/output (RGPIO)
* Two serial communications interfaces (SCI)
* Up to two serial peripheral interfaces (SPI)
* Two flexible timer modules (FTM)
* Timer pulse-width modulator (TPM)
* The MCF51AC256 is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
