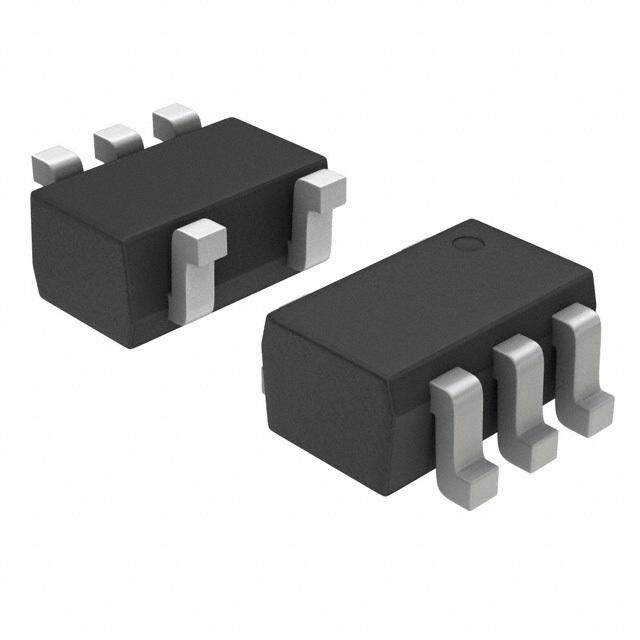

The MC74VHC1G14DFT2G is a single gate Schmitt-trigger Inverter fabricated with silicon gate CMOS technology. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The device input structure provides protection when voltages up to 7V are applied, regardless of the supply voltage. This allows the device to be used to interface 5V circuits to 3V circuits. The device can be used to enhance noise immunity or to square up slowly changing waveforms.
4ns Propagation delay (tPD)
1µA Low power dissipation (ICC)
Power down protection provided on inputs
Balanced propagation delays
Pin and function compatible with other standard logic families
