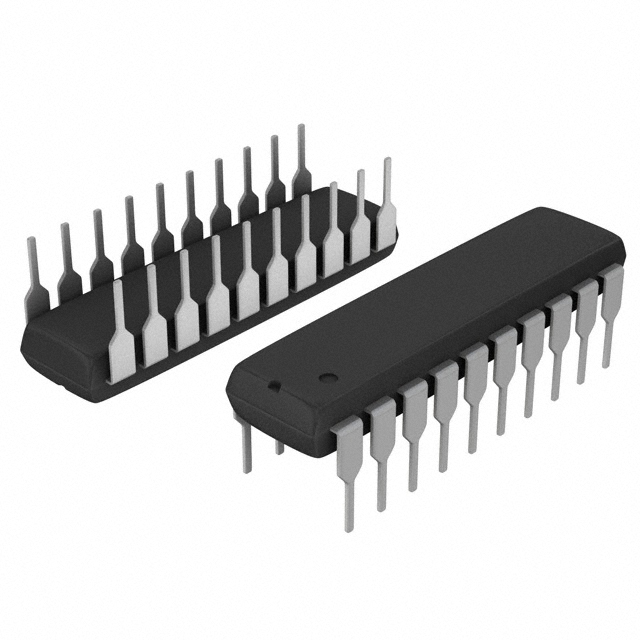

Octal 3−State Non−Inverting Buffer/Line Driver/Line Receiver With LSTTL−Compatible Inputs
High−Performance Silicon−Gate CMOS
The MC74HCT541A is identical in pinout to the LS541. This device may be used as a level converter for interfacing TTL or NMOS outputs to high speed CMOS inputs. The HCT541A is an octal non−inverting buffer/line driver/line receiver designed to be used with 3−state memory address drivers,
clock drivers, and other bus−oriented systems. This device features inputs and outputs on opposite sides of the package and two ANDed active−low output enables.
Features
•Output Drive Capability: 15 LSTTL Loads
•TTL/NMOS−Compatible Input Levels
•Outputs Directly Interface to CMOS, NMOS and TTL
•Operating Voltage Range: 4.5 to 5.5 V
•Low Input Current: 1A
•In Compliance With the JEDEC Standard No. 7A Requirements
•Chip Complexity: 134 FETs or 33.5 Equivalent Gates
