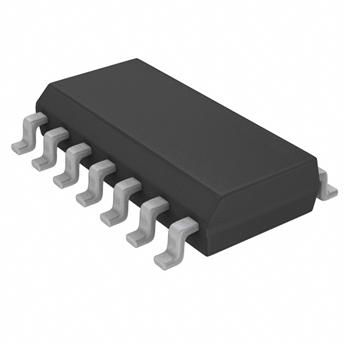

The MC74HC86A is identical in pinout to the LS86. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
Features
•Output Drive Capability: 10 LSTTL Loads
•Outputs Directly Interface to CMOS, NMOS, and TTL
•Operating Voltage Range: 2.0 to 6.0 V
•Low Input Current: 1 A
•High Noise Immunity Characteristic of CMOS Devices
•In Compliance with JEDEC Standard No. 7A Requirements
