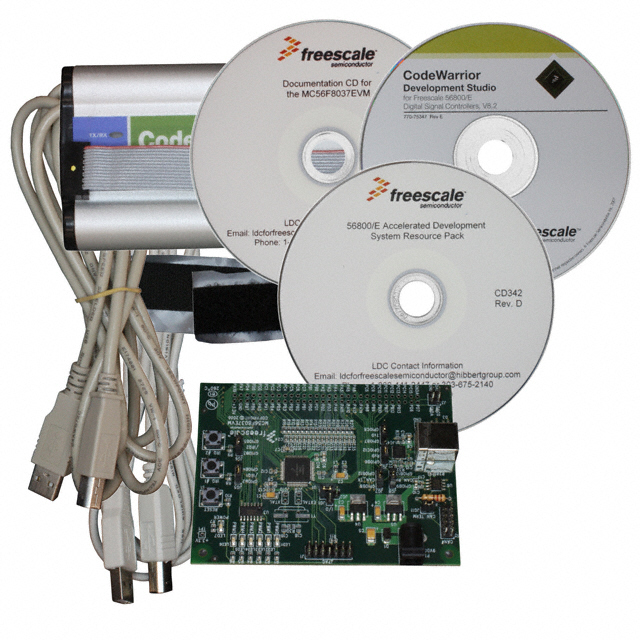

The MC56F8037EVM is an evaluation module for MC56F8037 digital signal controller. This module allows easier and faster development for 56F802x and 56F803x digital signal controllers. The MC56F8037 is a 56800E core based digital signal controller (DSC). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals. The MC56F8037EVM evaluation module that includes a MC56F8037 part, USB interface, user LEDs, user pushbutton switches and a daughter card connector. The daughter card connector allows signal monitoring and expandability of user features. This evaluation module is designed as a versatile development card using the MC56F8037 processor, allowing the creation of real time software and hardware products to support a new generation of applications.
Built in circuitry for RS232 communication
Six onboard real time user debugging LEDs
Manual RESET pushbutton
Daughter card connectors
Joint test action group (JTAG) port interface connector, for an external debug host target interface
Onboard power regulation provided from an external +9V DC supplied power input
Light emitting diode (LED) power indicator
USB interface, for easy connection to a host processor
