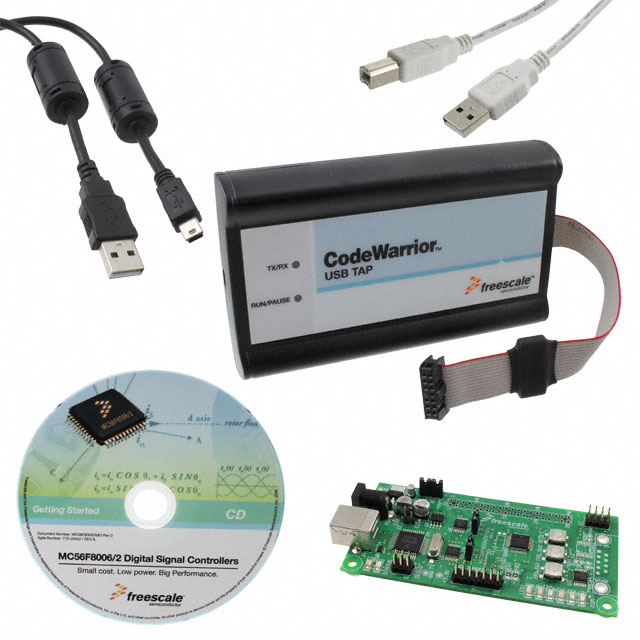

The MC56F8006DEMO-T is a cost effective board targeting quick digital signal controller (DSC) evaluation, demonstration and debugging of the NXP MC56F8006VLF DSC. It also includes an MC9S08JM60 for USB and voltage regulation for the DSC, and a CodeWarrior USB TAP. The MC56F8006 demo board has a series of six LEDs connected to PWM channels in order to monitor signals and has a reset and two IRQ switches.
Complete pin out available including a 40pin header compatible with all 56F80xx boards
Supply voltage options from USB connector, direct power supply in J1 and using standard power jack
