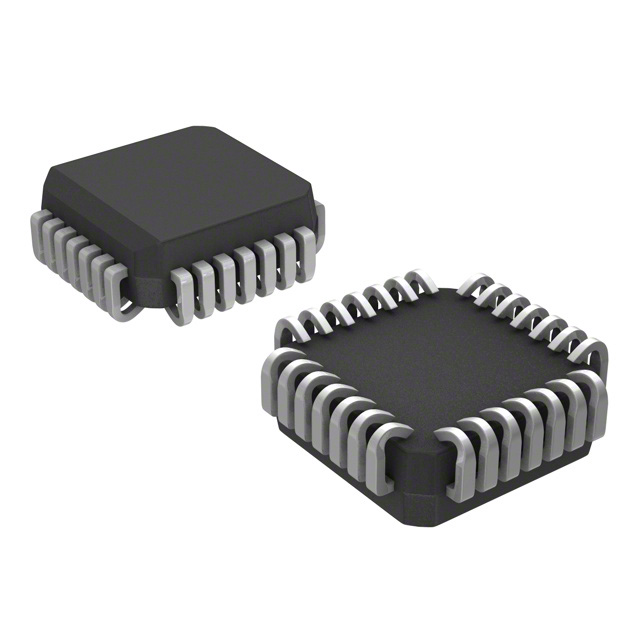

The MC10E/100E104 is a quint 2-input AND/NAND gate. The function output F is the OR of all five AND gate outputs, while F is the NOR. The Q outputs need not be terminated if only the F outputs are to be used.The 100 Series contains temperature compensation.
Features
---
|
600ps Max. Propagation Delay
OR/NOR Function Outputs
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = ?4.2 V to ?5.7 V
Internal Input Pulldown Resistors
ESD Protection: > 2 KV HBM, > 200 V MM
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
Moisture Sensitivity Level 1
For Additional Information, see Application Note AND8003/D
Flammability Rating: UL-94 code V-0 @ 1/8",Oxygen Index 28 to 34
