MAX9202ESD+Maxim Integrated* Fast 7ns Propagation Delay * Low 9mW/Comparator Power Consumption * Separate Analog and Digital Supplies * Flexible Analog Supply: +5V to +10V or ±5V * Input Voltage Range Includes * Negative Supply Rail * TTL-Compatible Outputs * TTL-Compatible Latch Inputs(MAX9202/MAX9203) * Available in Space-Saving Packages * 8Pin SOT23 (MAX9203) * 14Pin TSSOP (MAX9202) * 16Pin TSSOP (MAX9201)
￥
34.76

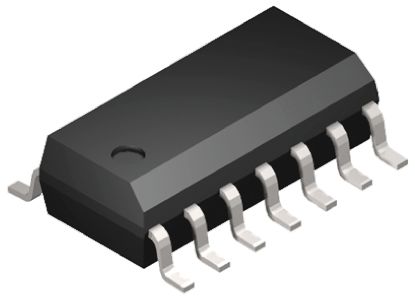

显示的图像仅供参考，应从产品数据表中获得准确的规格。
MAX9202ESD+Maxim Integrated
制造商:
Maxim Integrated
制造商型号#:
MAX9202ESD+
百芯编号#:
CM45903569
价格(CNY):
￥
34.76
百芯库存:
56
个
库存地点:香港
可供应量:
39
个在库
此为供应商库存，需要与销售确认
产品类别:
比较器
产品描述:
* Fast 7ns Propagation Delay * Low 9mW/Comparator Power Consumption * Separate Analog and Digital Supplies * Flexible Analog Supply: +5V to +10V or ±5V * Input Voltage Range Includes * Negative Supply Rail * TTL-Compatible Outputs * TTL-Compatible Latch Inputs(MAX9202/MAX9203) * Available in Space-Saving Packages * 8Pin SOT23 (MAX9203) * 14Pin TSSOP (MAX9202) * 16Pin TSSOP (MAX9201)
The MAX9202ESD+ is a low cost, 7ns, low power voltage comparator in 14 pin NSOIC package. This high speed, low power, dual comparator feature TTL logic outputs with active internal pull-ups. Fast propagation delay (7ns typical at 5mV overdrive) makes this device ideal for fast A/D converters and sampling circuits, line receivers, V/F converters and many other data-discrimination, signal restoration applications. The comparator can be powered from separate analogue and digital power supplies or from a single combined supply voltage. The analogue input common mode range includes the negative rail allowing ground sensing when powered from a single supply. It consumes only 9mW per comparator when powered from a +5V supply. It features output latches with TTL compatible inputs. The comparator output states are held when the latch inputs are driven low.
Supply voltage range is 5V to 10V, ±4.75V to ±5.25V
Operating temperature range from -40°C to 85°C
Separate analogue and digital supplies
Input offset voltage is 1mV
Input bias current is 1.25µA and input offset current is 50nA
Power supply rejection ratio is 50µV/V and common mode rejection ratio is 50µV/V
