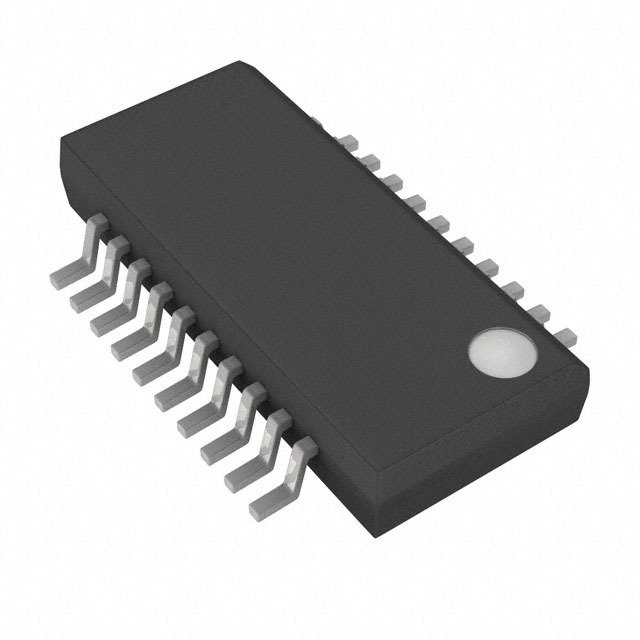

The MAX6697EP99+ is a 7 channel precision temperature monitor in 20 pin QSOP package. This temperature sensor monitors its own temperature and the temperatures of up to six external diode connected transistors. All temperature channels have programmable alert thresholds. Channels 1, 4, 5 and 6 also have programmable overtemperature thresholds. When measured temperature of channel exceeds the respective threshold, a status bit is set in one of the status registers. Two open-drain outputs, active-low OVERT and active-low ALERT, assert corresponding to these bits in status register. The 2-wire serial interface supports standard system management bus (SMBus) protocols such as write byte, read byte, send byte and receive byte for reading temperature data and programming the alarm thresholds.
Supply voltage range from 3V to 5.5V
Operating temperature range from -40°C to 125°C
Six thermal diode inputs
Local temperature sensor
±1°C remote temperature accuracy & ±2°C local temperature accuracy (+60°C to +100°C, VCC = 3.3V)
Temperature monitoring begins at power-on reset threshold (POR) for fail safe system protection
Standby supply current of 30µA and operating current of 500µA during conversion
Temperature resolution of 11bit for channel 1 and 8bit for other diode channels
Supply sensitivity of temperature accuracy is ±0.2°C/V
