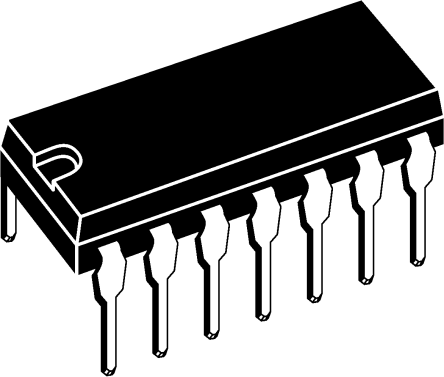

The MAX542BCPD+ is a +5V, serial input, voltage output 16bit digital to analogue converter (DAC) in 14 pin DIP package. The device operates from single +5V supply and provides 16bit performance (±2LSB INL and ±1LSB DNL) over temperature without any adjustments. The unbuffered output of DAC results in low supply current of 0.3mA and low offset error of 1LSB. The DAC output range is 0V to VREF and 16bit serial word is used to load data into DAC latch. The 10MHz, 3-wire serial interface is compatible with SPI/QSPI/MICROWIRE and it interfaces directly with optocouplers for applications requiring isolation. A power-on reset circuit clears DAC output to 0V (unipolar mode) when power is initially applied. For bipolar operation, matched scaling resistors are provided in MAX542B for use with an external precision op amp (such as the MAX400) which generates a ±VREF output swing. It is used in high resolution offset and gain adjustment, automated test equipments and data acquisition systems.
Supply voltage range from 4.75V to 5.25V
Operating temperature range from 0°C to 70°C
Low power of 1.5mW
Output settling time of 1µs
Voltage output slew rate of 25V/µs
Reference -3dB bandwidth of 1MHz
Power supply rejection (PSR) of ±1LSB at 4.75V
Unbuffered voltage output directly drives 60Kohm loads
Schmitt trigger inputs for direct optocoupler interface
Kelvin sense connections for reference and analogue ground pins to reduce layout sensitivity
