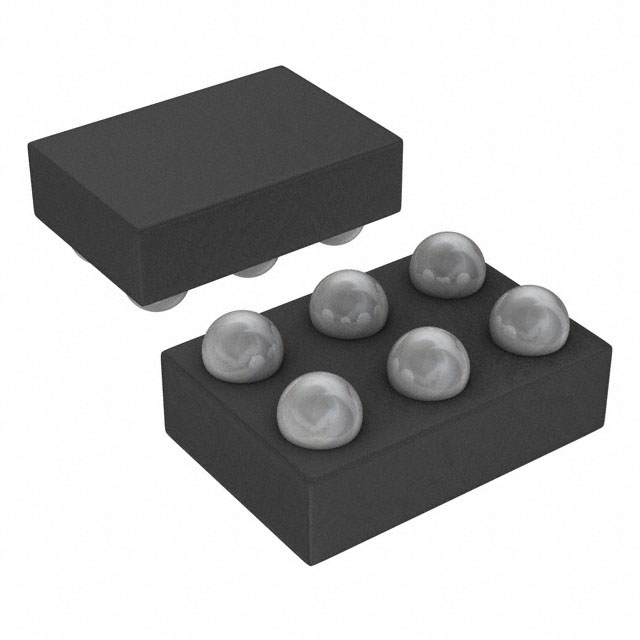

The MAX44264EWT+T is an ultra low power operational amplifier (op-amp) in 6 pin WLP package. This ultra small op-amp draws only 750nA of supply current. It operates from single 1.8V to 5.5V supply and features ground sensing inputs and rail to rail output. The ultra-low supply current, low operating voltage and rail to rail output capabilities make this operational amplifier ideal for use in single lithium ion (Li+) or two cell NiCd or alkaline battery systems. The rail to rail output stage of MAX44264 is capable of driving the output voltage to within 4mV of rail with a 100Kohm load and can sink and source 11mA with 5V supply. The op-amp is unity gain stable.
Ground sensing input common mode range
Outputs source and sink 11mA of load current
No phase reversal for overdriven inputs
High 120dB open-loop voltage gain and input offset current of ±12.5pA at TA = +25°C
Input offset voltage of ±0.5mV and input bias current of ±200pA
Gain bandwidth product of 9KHz and slew rate of 2V/ms at TA = +25°C
250pF minimum capacitive load capability
Supply current (per amplifier) for 0.6µA at VDD = +1.8V and 0.75µA at VDD = +5V (TA = +25°C)
