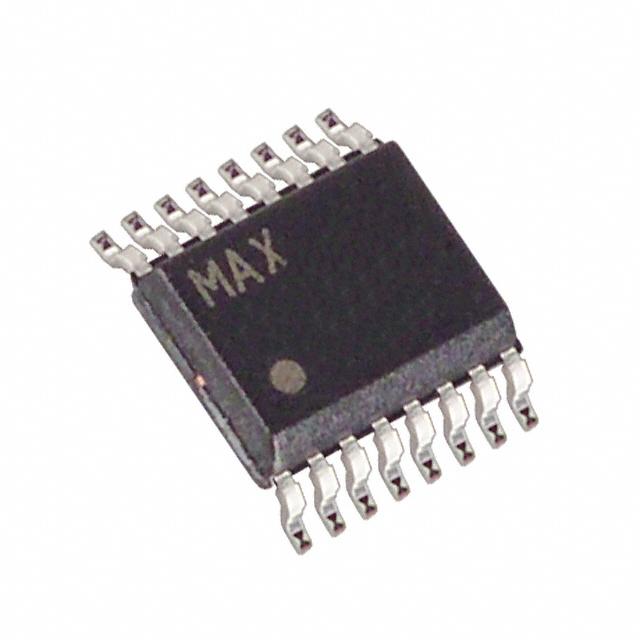

The MAX4382EEE+ from Maxim Integrated Products is an ultra small, low cost, 210MHz, single supply op-amp with rail to rail outputs and disable in 16 pin QSOP package. This op-amp is a unity gain stable device that combines high speed performance, Rail to Rail® outputs and high-impedance disable mode. The common-mode input voltage range extends beyond the negative power supply rail. The MAX4382 require only 5.5mA of quiescent supply current per op-amp while achieving 210MHz -3dB bandwidth, 55MHz 0.1dB gain flatness and a 485V/µs slew rate. This device is an excellent solution in low power/low voltage systems that require wide bandwidth such as video, communications and instrumentation. It is also used in set-top boxes, surveillance video systems, battery-powered instruments, analogue to digital converter Interface, CCD imaging systems, video routing, digital cameras, video-on-demand and video line driver.
Supply voltage range is ±2.25V to ±5.5V, 4.5V to 11V
